BEV044 Beveled Wall Mount Hinge - Beverly Series

The BEV044 beveled hinge from the GGH Beverly Series is a premium hinge designed for wall-to-glass installations. Featuring elegantly beveled edges, this hinge offers seamless functionality while securing a frameless shower door to the wall. Its refined and modern appearance makes it an ideal choice for high-end, contemporary shower enclosures. The BEV044 combines aesthetic appeal with robust performance, offering a reliable and stylish solution for your glass project.

Key Features

• Materials: Constructed from high-quality brass for exceptional durability and corrosion resistance.
• Glass Compatibility: Designed for glass thicknesses from 5/16" to 1/2" (8 to 12 mm).
• Enhanced Grip: Equipped with pre-glued tactile gaskets featuring Anti-Slip Technology for superior hinge grip and security.
• Weight Capacity:
  • Two Hinges: Supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm).
  • Three Hinges: Supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).
• Adjustability: Includes a 5-degree reversible pin, allowing for easy door closure adjustments and precise alignment.
• Installation: Designed for easy installation with standard tools. The pre-glued gaskets ensure a secure and straightforward installation process.

Finishes Available

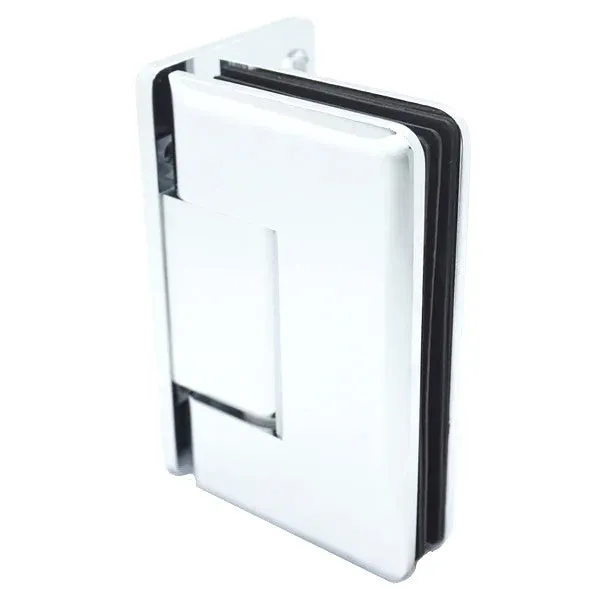

• Chrome

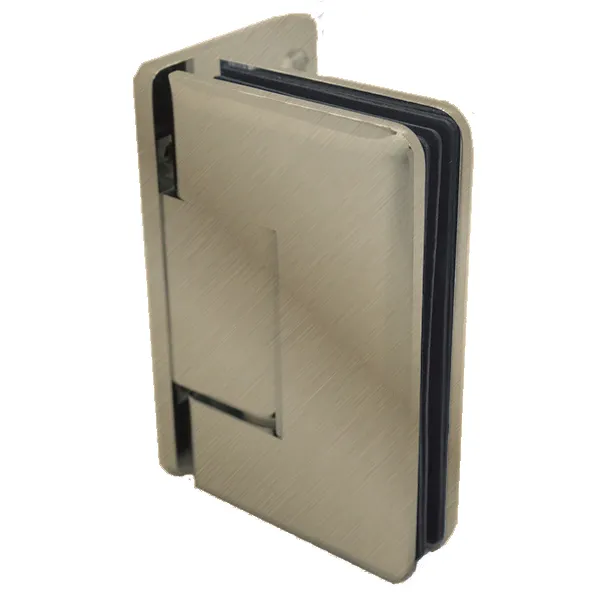

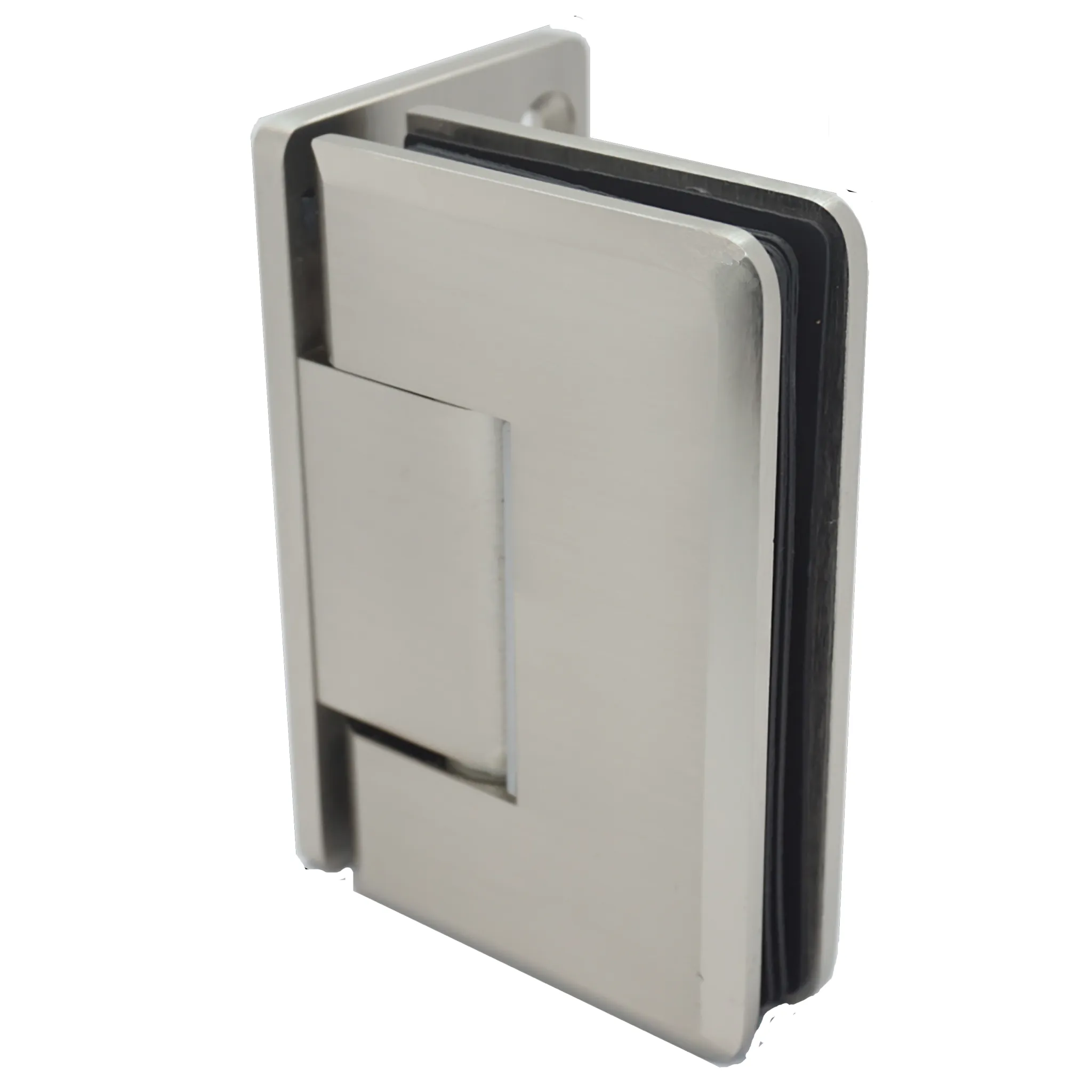

• Brushed Nickel

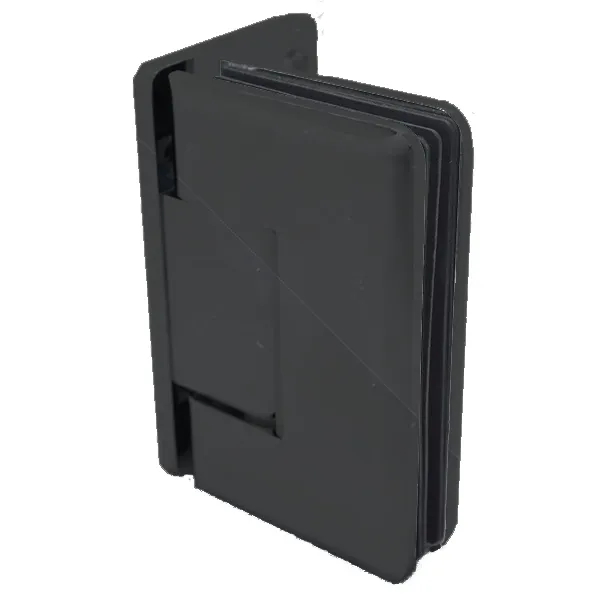

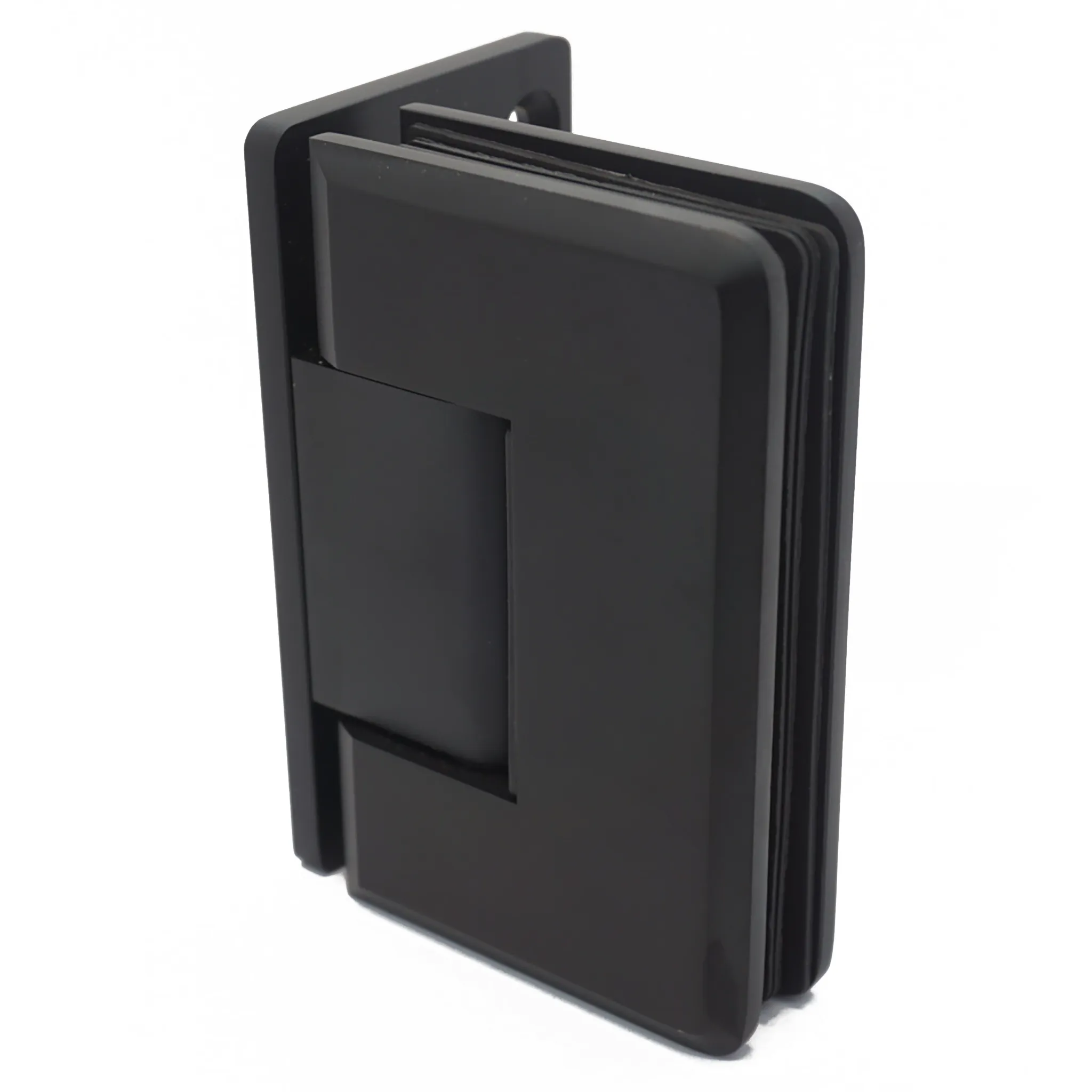

• Matte Black

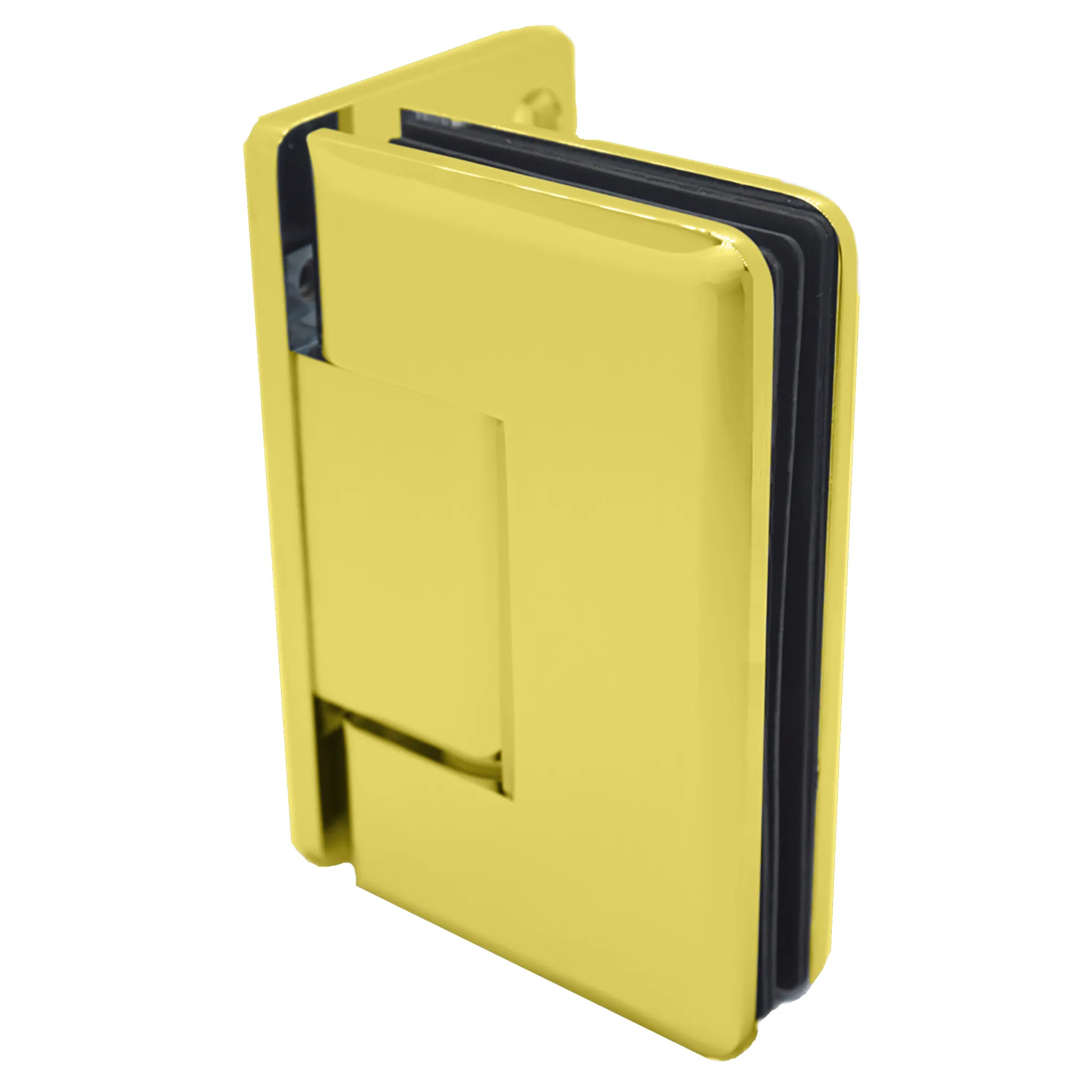

• Satin Brass
• Polished Nickel
• Brushed Bronze
• Gun Metal
• Oil Rubbed Bronze

Specifications

• Dimensions: Please click "VIEW PDF/CAD DRAWINGS" for detailed product dimensions and glass fabrication instructions.
• Warranty: Backed by a 5-year manufacturer warranty for added peace of mind.

Applications

The BEV044 beveled hinge is perfect for frameless shower enclosures, providing a sophisticated and modern touch with its beveled edges. Ideal for luxurious, high-end bathroom designs.

For more information or assistance, contact us at .
