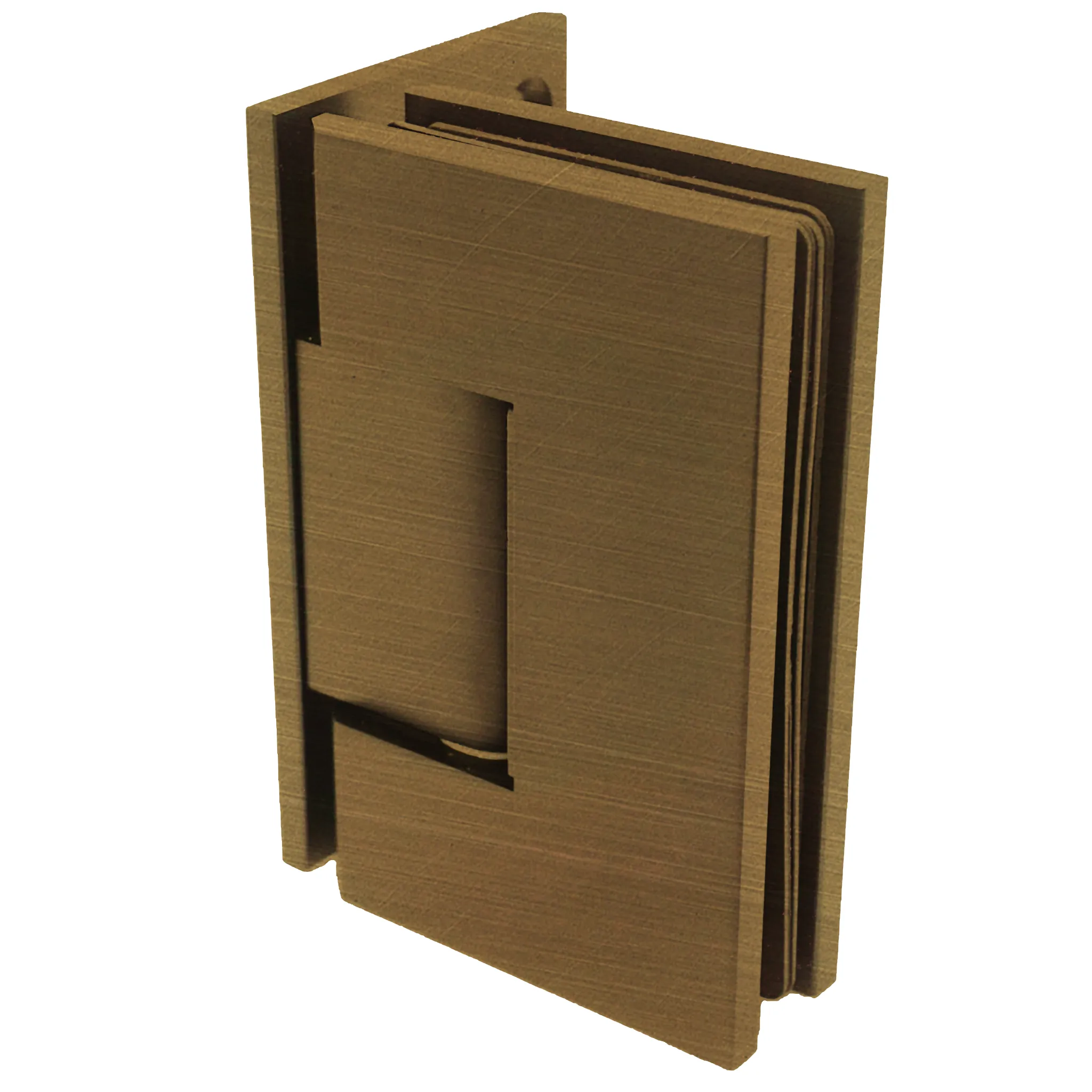

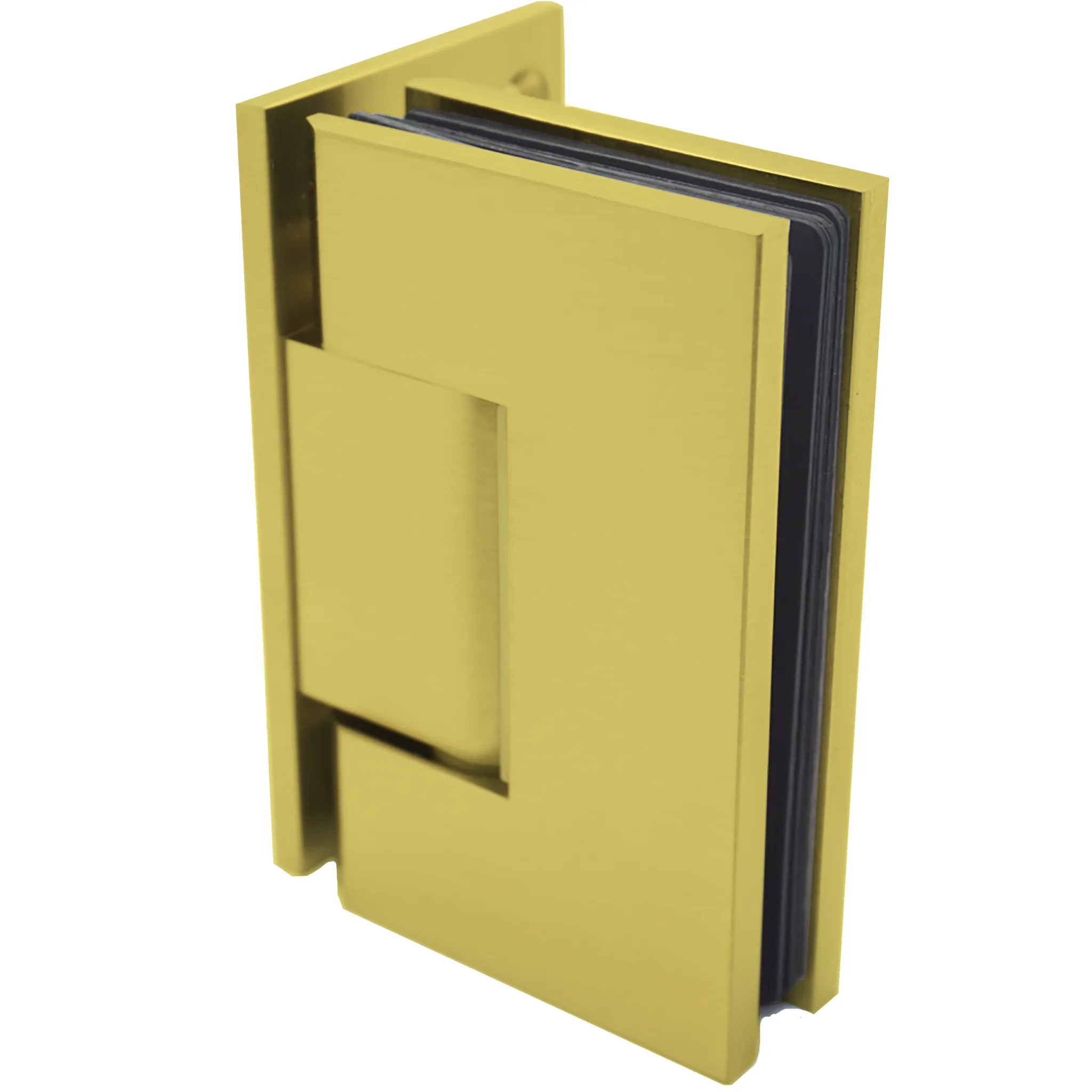

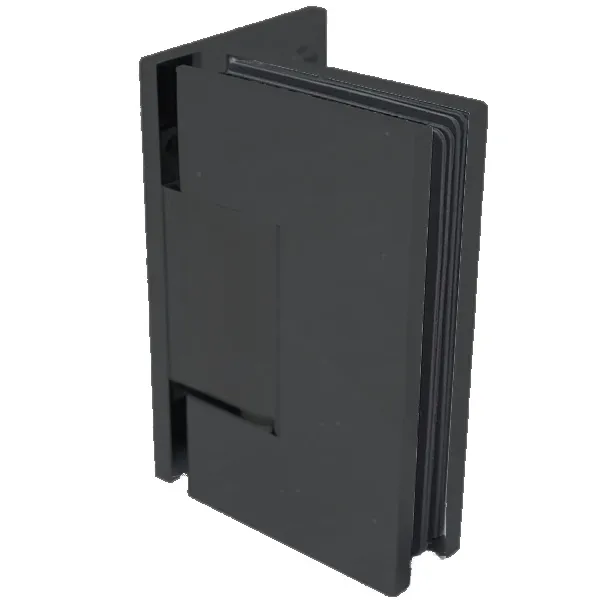

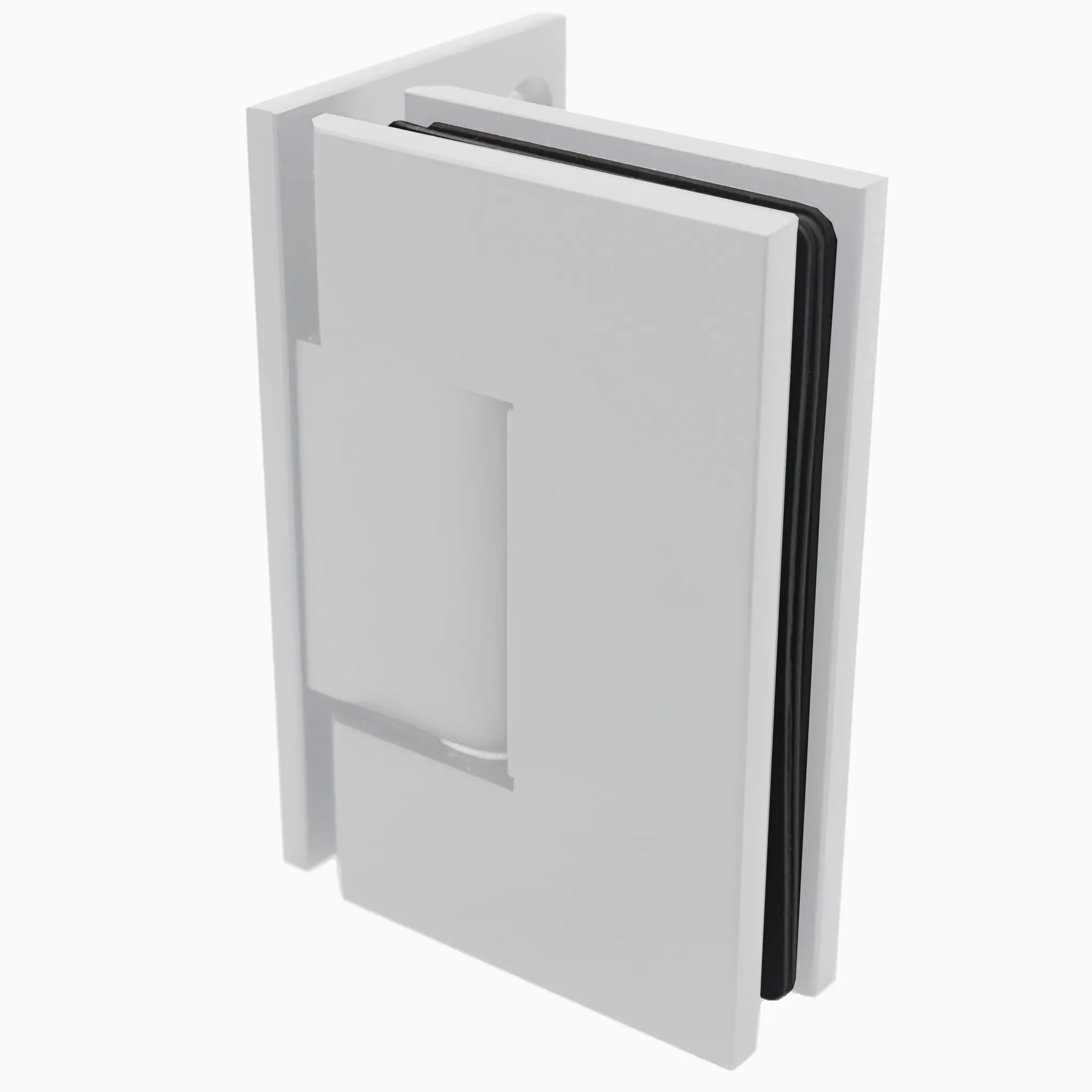

JEN044 Offset Plate Shower Door Hinge - Jennifer Series

The JEN044 Offset Plate Hinge from the Jennifer Series is a premium square-design hinge tailored for glass-to-wall shower door installations. Featuring an offset plate for added installation flexibility, this hinge ensures sleek aesthetics and reliable functionality, making it an excellent choice for modern frameless shower enclosures. With advanced features like Anti-Slip Technology and adjustable closure settings, it offers a dependable solution for your glass door projects.

Key Features

• Materials: Constructed from high-quality brass for long-lasting durability and corrosion resistance.
• Glass Compatibility: Suitable for glass thicknesses from 5/16" to 1/2" (8 to 12 mm).
• Enhanced Grip: Pre-glued tactile gaskets with Anti-Slip Technology provide superior grip and security for the glass panel.
• Adjustability: Equipped with a 5-degree reversible pin for precise door alignment and customizable closure fit.
• Weight Capacity:
  • Two Hinges: Supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).
  • Three Hinges: Handles up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).
• Installation: Designed for quick and easy installation with pre-glued gaskets and standard tools.

Finishes Available

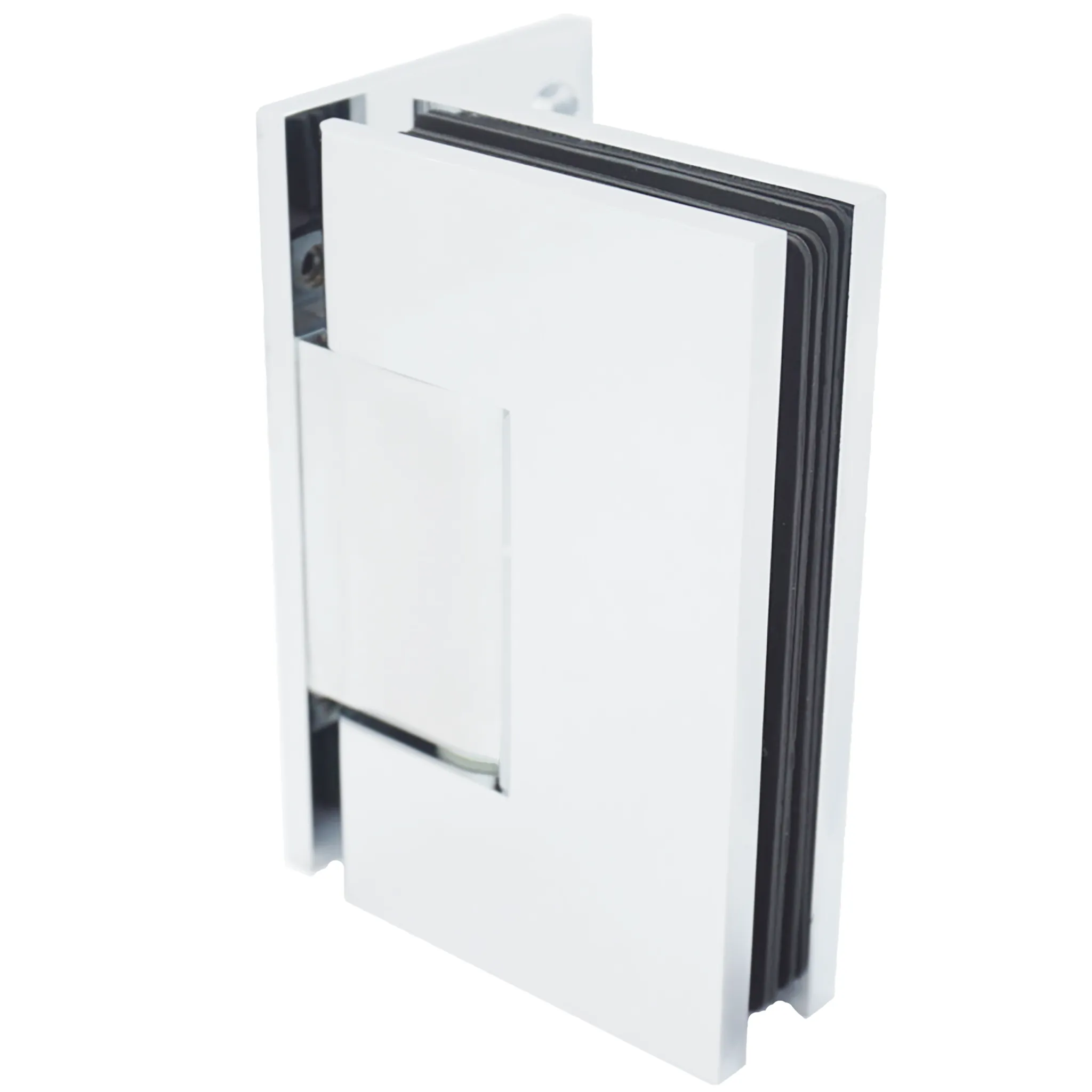

• Chrome

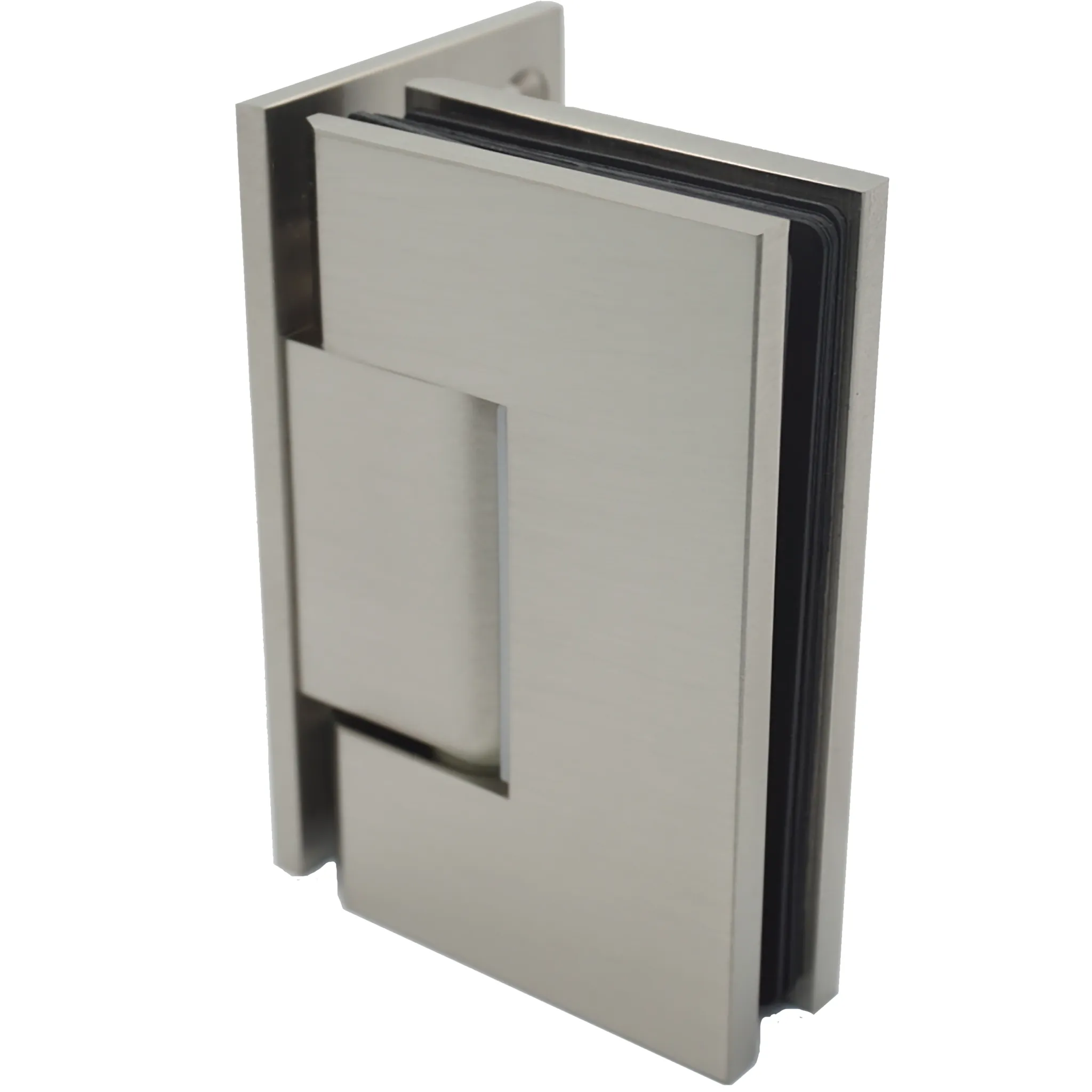

• Brushed Nickel

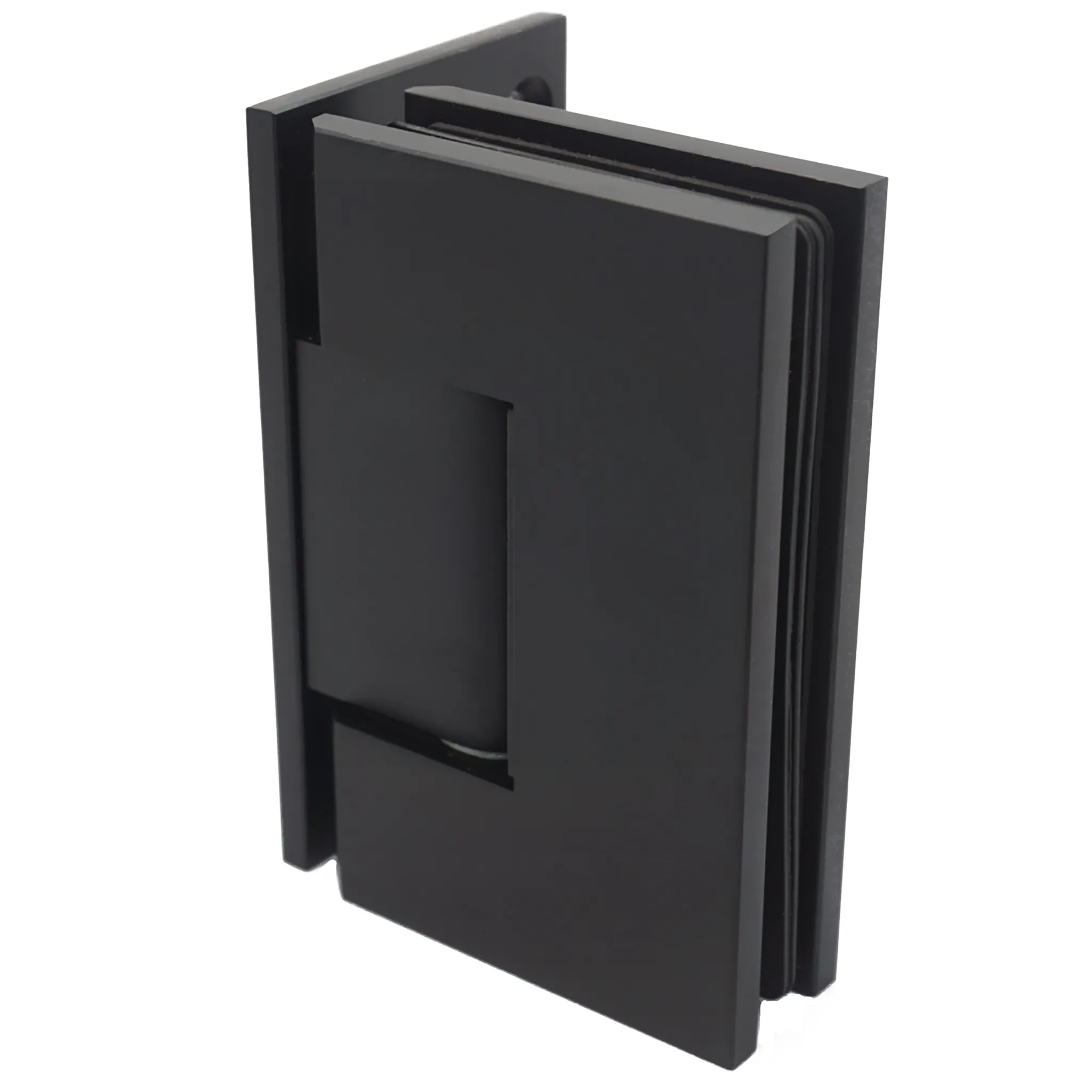

• Matte Black

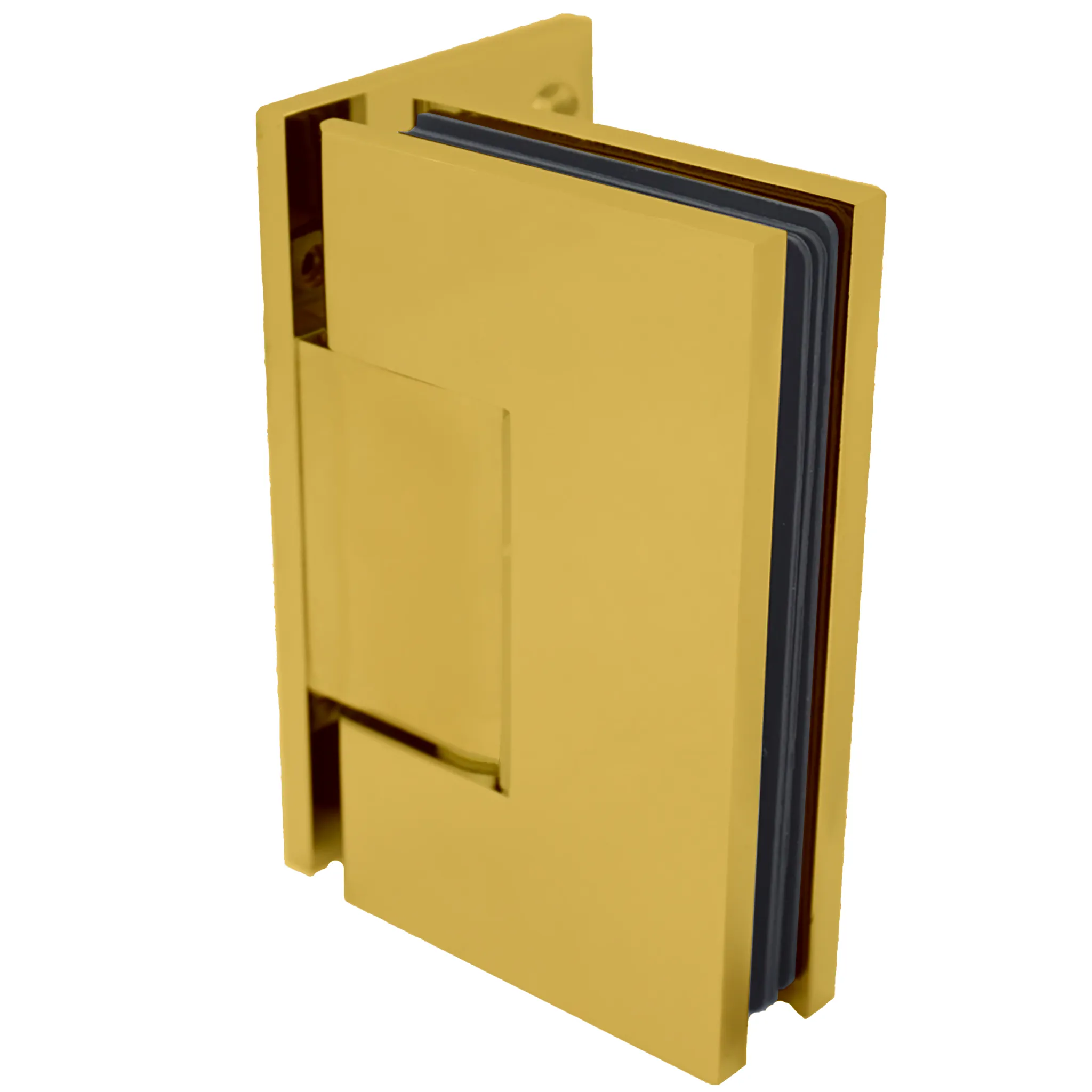

• Satin Brass
• Polished Nickel

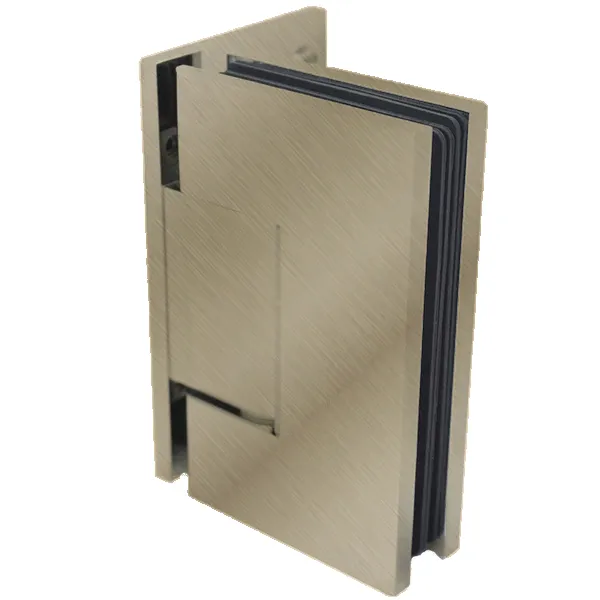

• Brushed Bronze

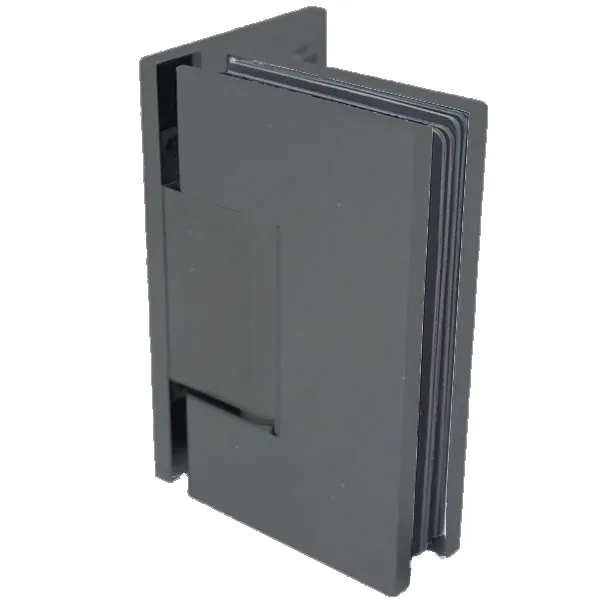

• Gun Metal
• Oil Rubbed Bronze

Specifications

• Dimensions: Click "VIEW PDF/CAD DRAWINGS" for detailed dimensions and glass fabrication instructions.
• Warranty: Backed by a 5-year manufacturer warranty for peace of mind.

Applications

The JEN044 hinge is perfect for contemporary frameless shower enclosures, offering a minimalist design that enhances any bathroom style while accommodating specific installation requirements with its offset plate.
