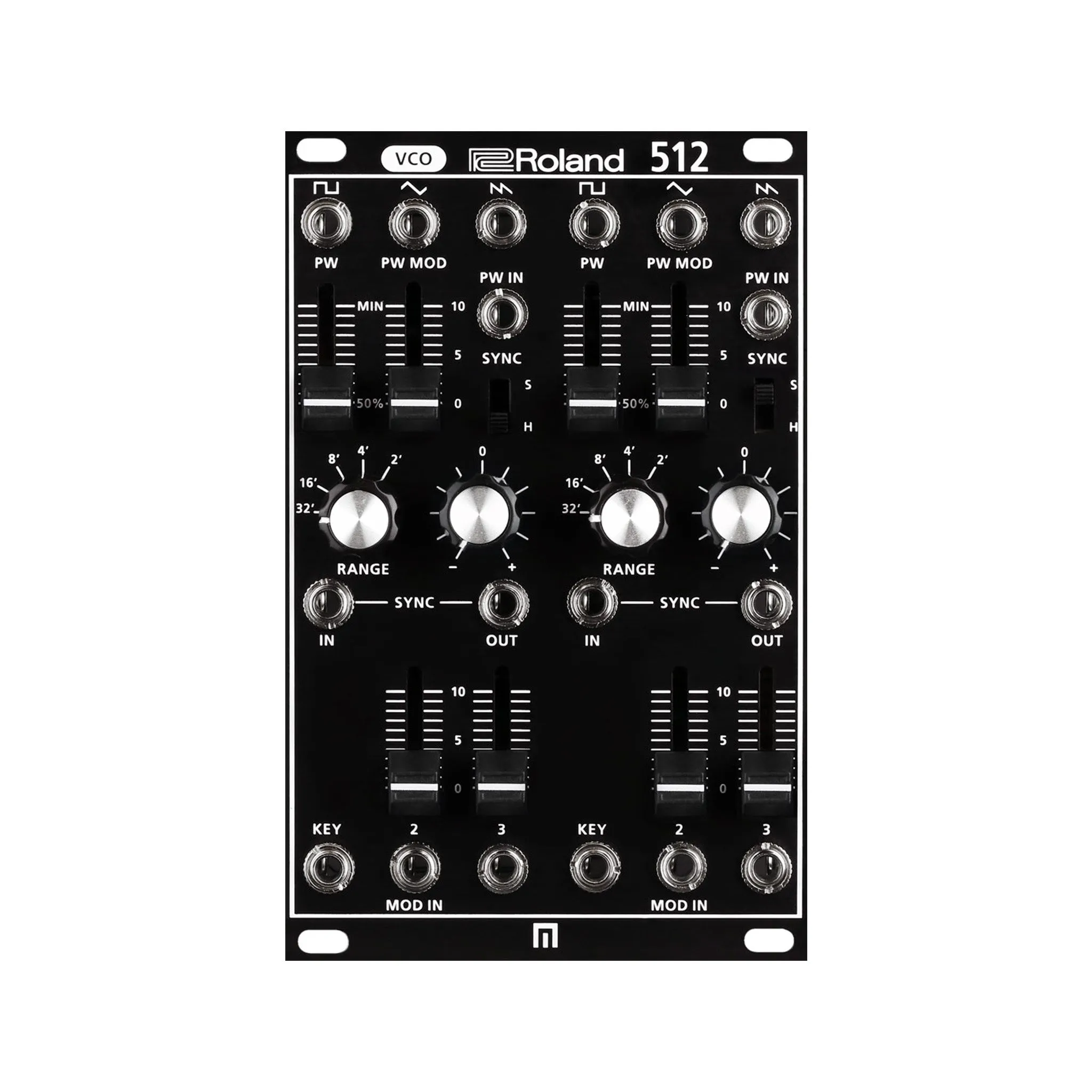

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. The SYSTEM-500 is made to exacting standards with top-quality components and solid controls, with a collaborative production process between Portland, USA and Hamamatsu, Japan. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.
Specifications:
- Controllers: Pulse Width slider, Pulse Width Modulation slider, Modulation In 2 slider, Modulation In 3 slider, Sync switch, Range knob, Pitch knob
- Connectors: Square Wave miniature phone type jack, Triangle Wave miniature phone type jack, Saw Wav miniature phone type jack, Pulse Width Input miniature phone type jack, Sync In, Out miniature phone type jack, Key In miniature phone type jack, Modulation In 2 miniature phone type jack, Modulation In 3 miniature phone type jack
- Power Supply: Eurorack power
- Current Draw: 70 mA ( 12 V), 55 mA (-12 V)
- Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Eurorack installation screws (4 pcs), Eurorack power cable
- Dimensions: 81 mm × 58 mm × 128.5 mm
- Weight: 212 g / 8 oz
