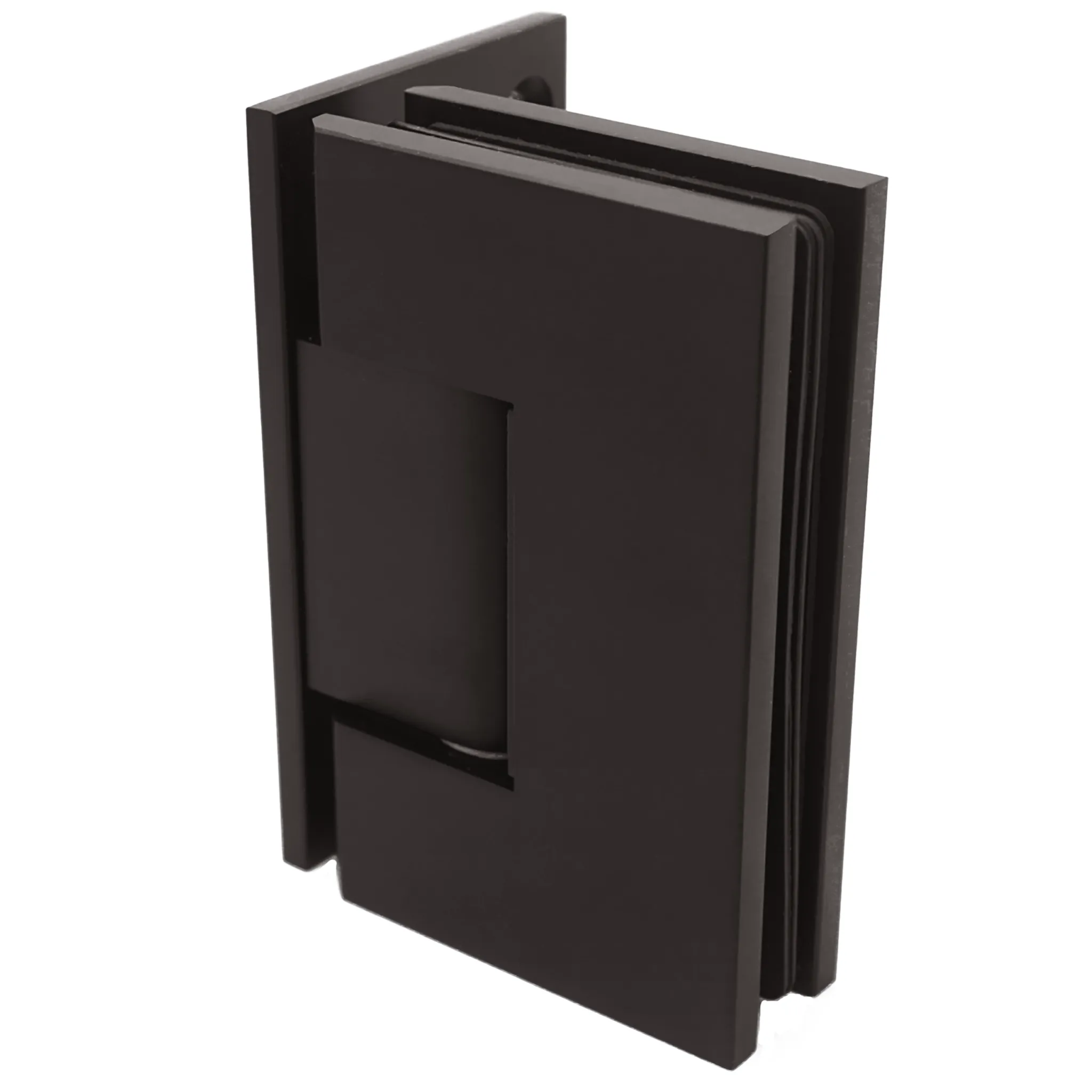

VIV044 Square Heavy Duty Hinge - Vivian Series
The VIV044 Square Heavy Duty Hinge from the Vivian Series is a premium hinge designed to provide exceptional strength and durability for frameless shower doors. Featuring an offset backplate, this hinge ensures added support and stability, making it an ideal solution for heavy glass panels. Its sleek, modern design is perfect for those looking to combine reliability with style in their bathroom enclosures.
Key Features
- Materials: Constructed from solid brass, ensuring strength, durability, and resistance to corrosion.
- Glass Compatibility: Suitable for glass thicknesses from 3/8" to 1/2" (10 to 12 mm).
- Weight Capacity:
- Two Hinges: Supports up to 110 lbs (50 kg), recommended for a maximum door width of 36" (914 mm).
- Three Hinges: Supports up to 140 lbs (63 kg), recommended for a maximum door width of 36" (914 mm).
- Offset Backplate: Designed to provide additional stability and support for heavy glass doors.
- Installation: Quick and easy installation with standard tools.
- Adjustment: Non-adjustable for precise, secure installation.
Finishes Available

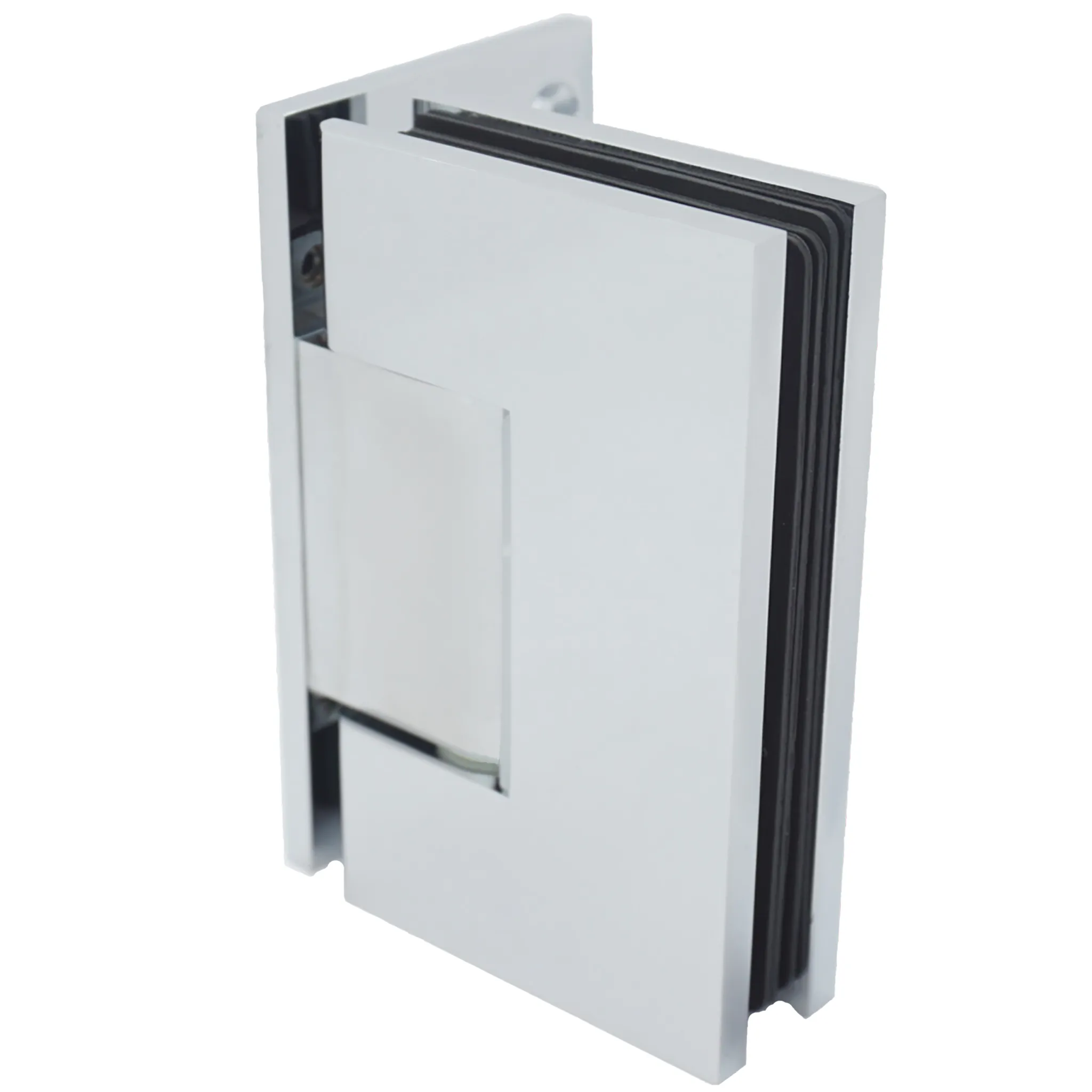

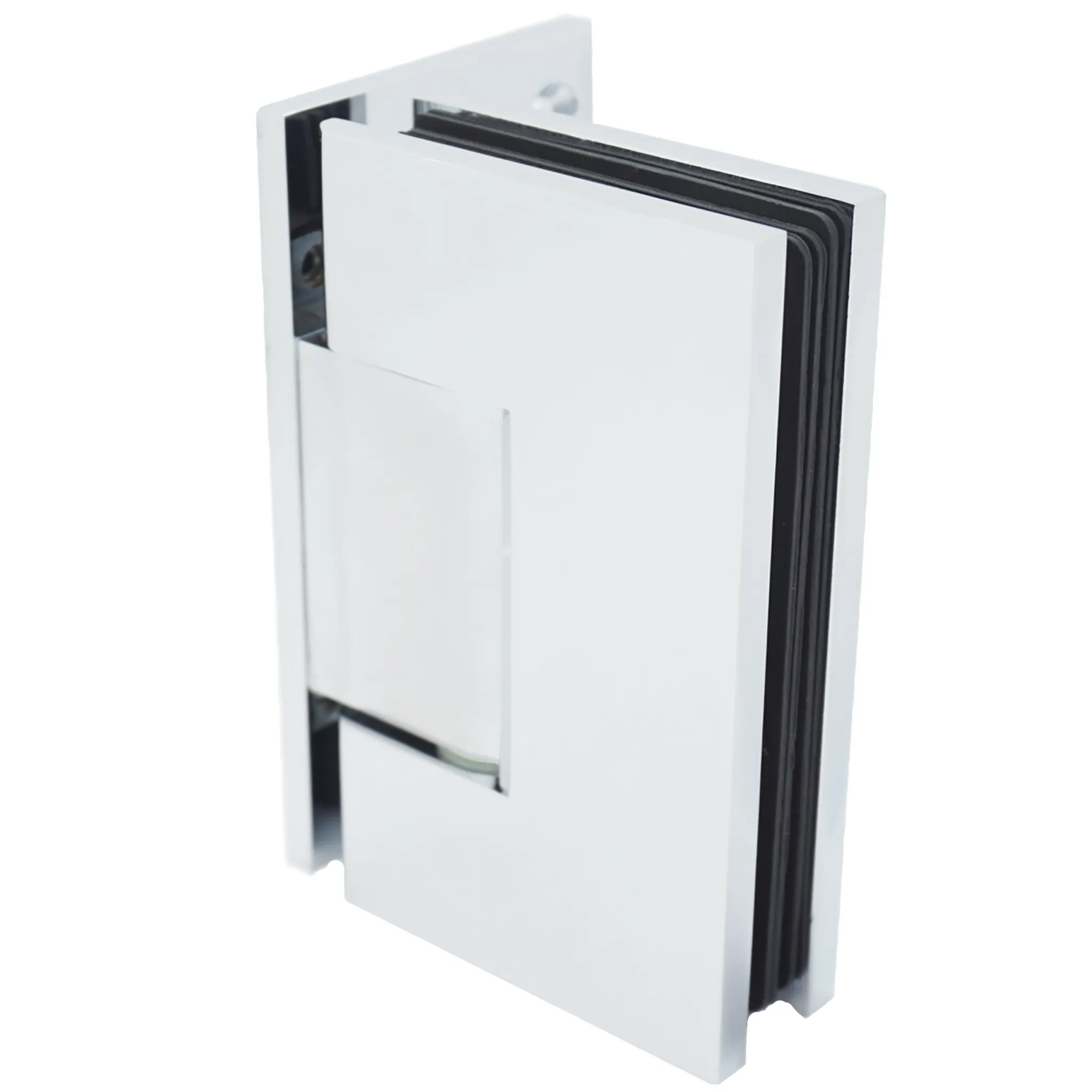

- Chrome

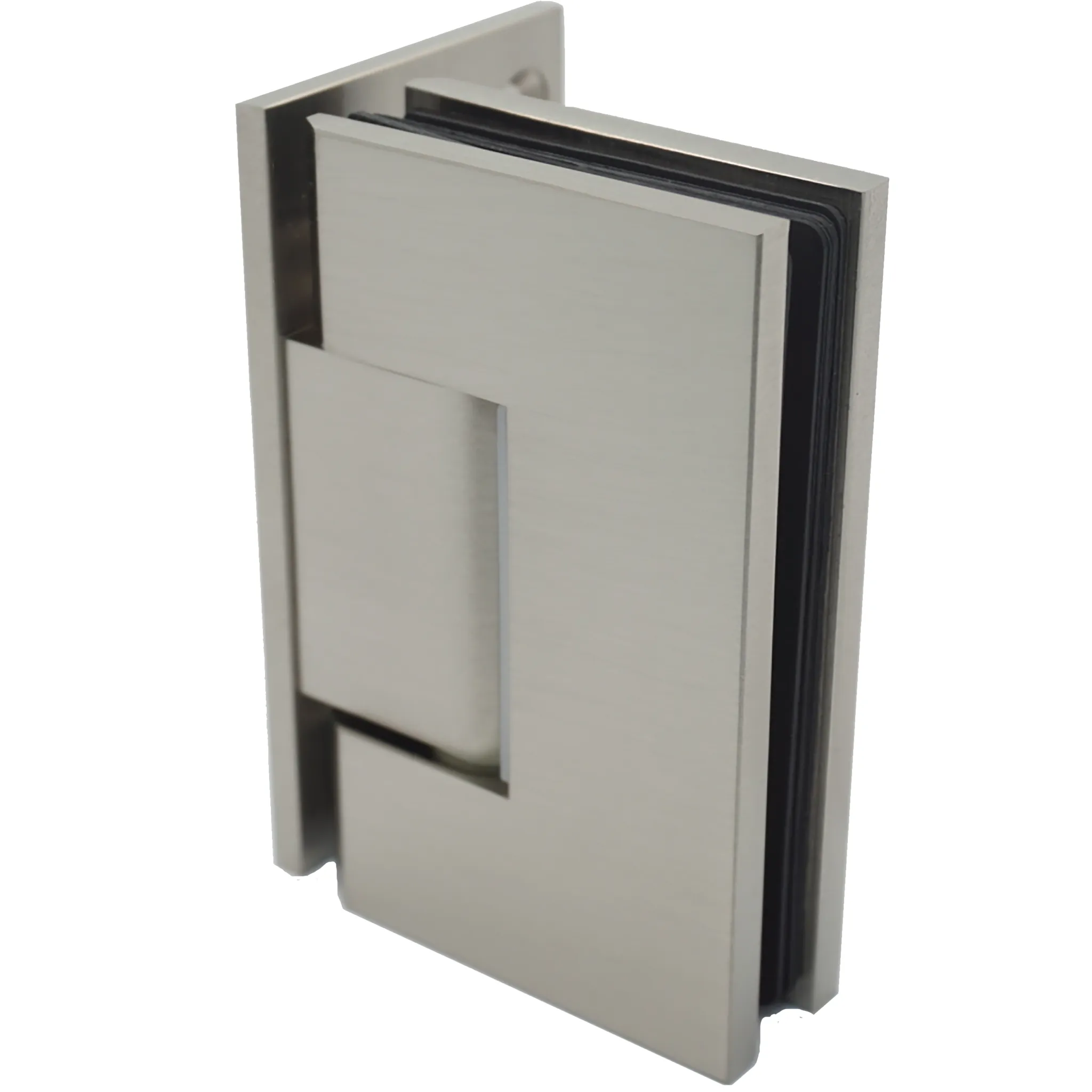

- Brushed Nickel

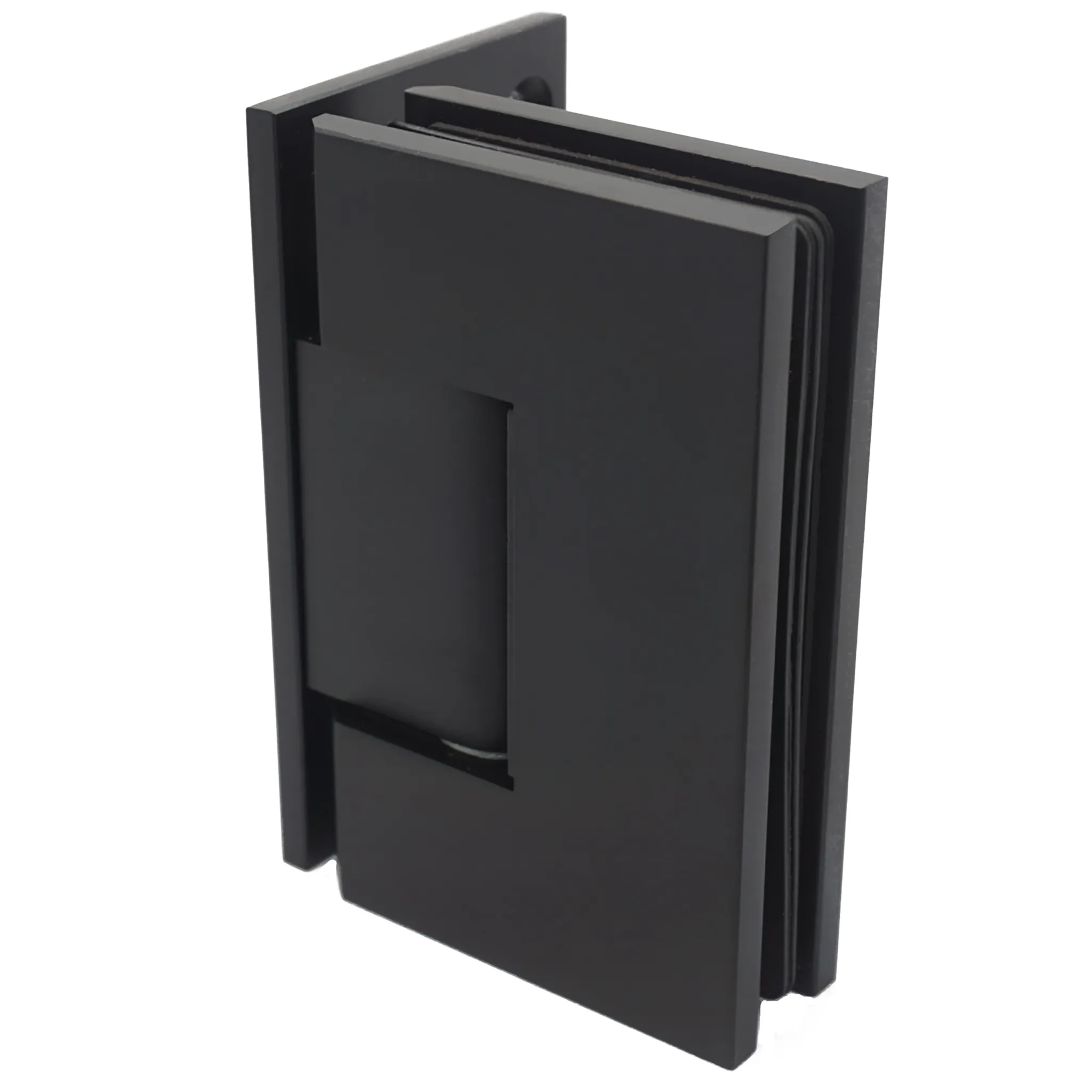

- Matte Black

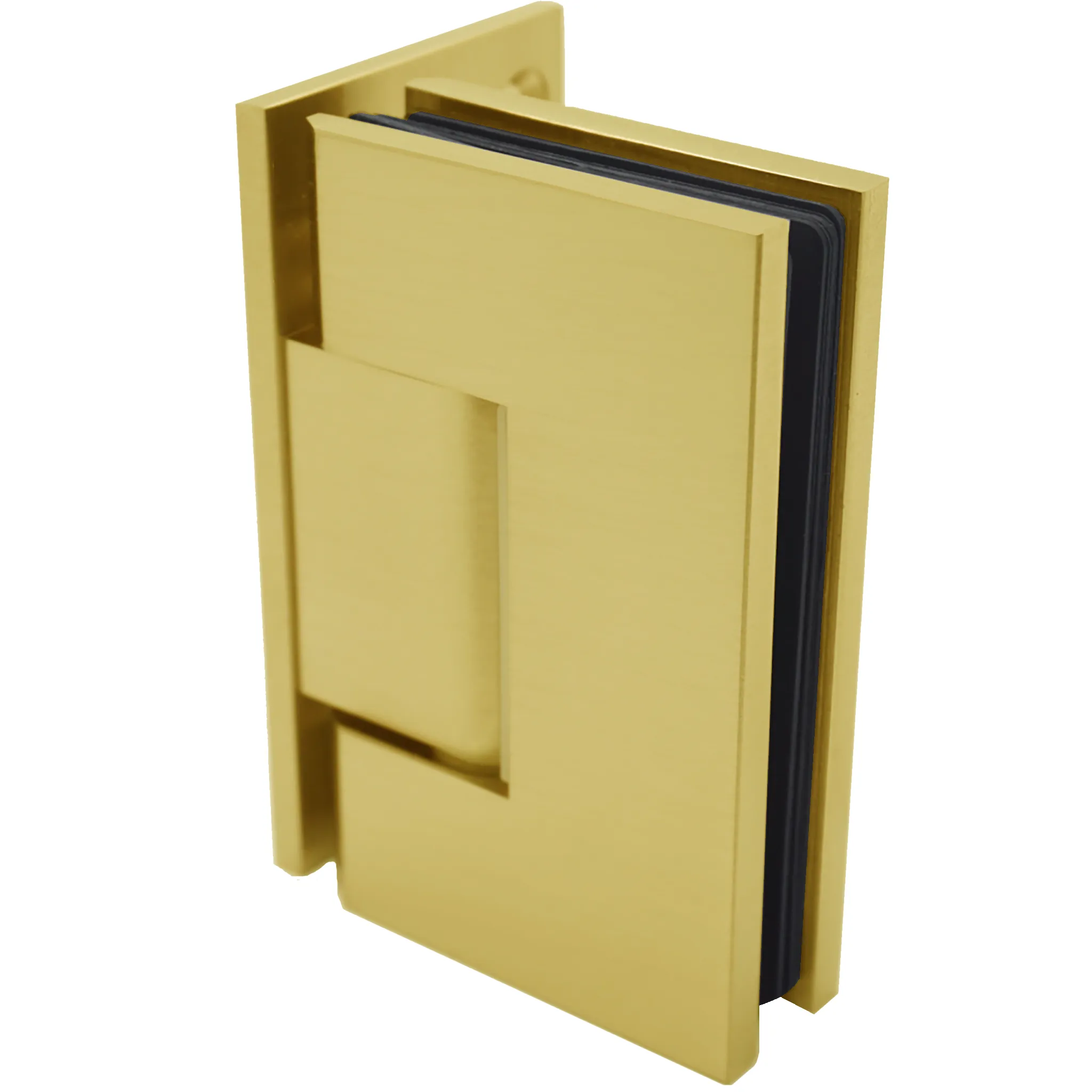

- Satin Brass
Specifications
- Dimensions: Please click "VIEW PDF DRAWING" for precise measurements and glass fabrication instructions.
- Warranty: 5-year manufacturer warranty for added peace of mind.
Additional Information
- Available for warehouse pickup, subject to availability.
- Delivery options are available for your convenience.
Applications
The VIV044 Square Heavy Duty Hinge is ideal for frameless shower enclosures that require robust support for heavy glass panels. Perfect for modern bathroom designs, this hinge offers reliable performance with a sleek, minimalistic aesthetic.
