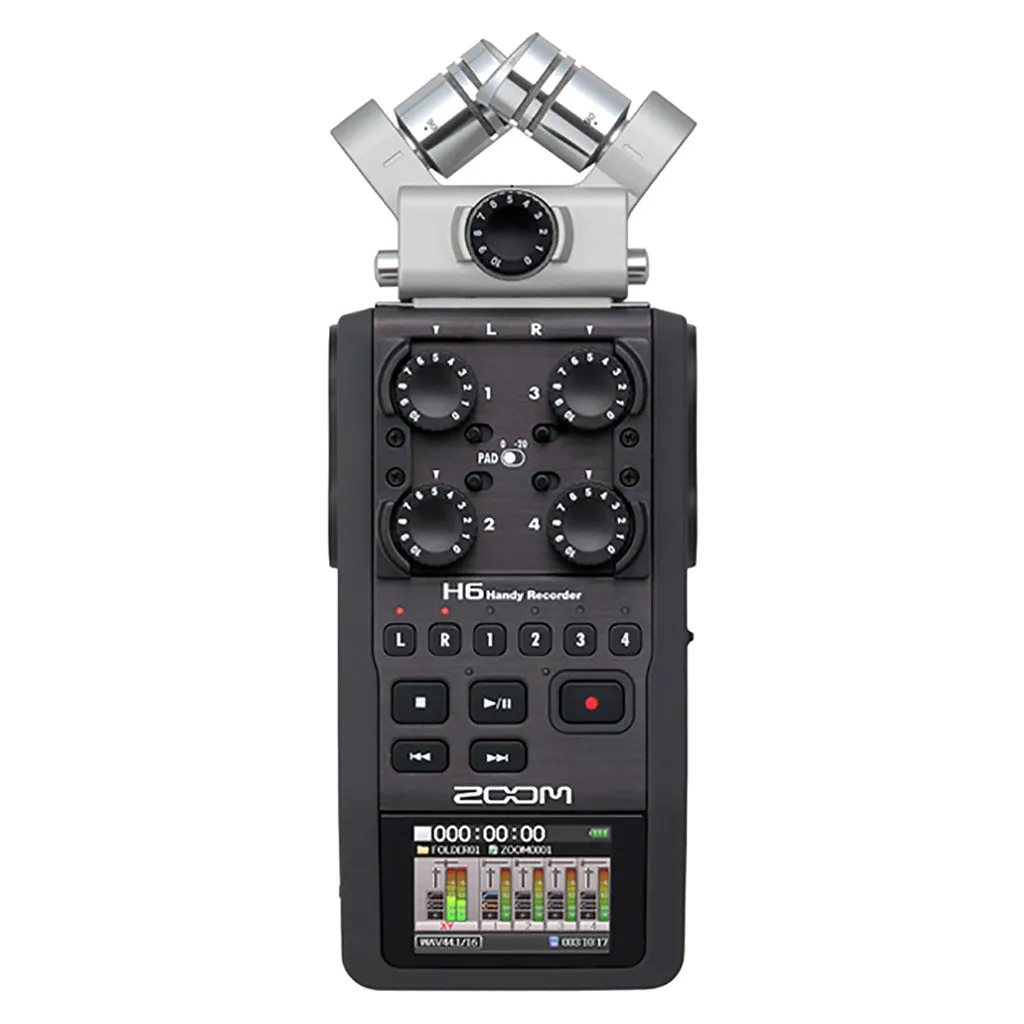

FEATURES OF THE H6
- Interchangeable input capsules
- Six-track simultaneous recording
- Four mic/line inputs with XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
- Phantom power for all main inputs: 12/ 24/ 48V
- Large full-color, angled LCD display
- Records directly to SD, SDHC and SDXC cards up to 128GB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 20 hours of operation with 4 AA alkaline batteries
Specs
- Audio Interface: Yes (via USB)
- A/D Resolution: 24-bit/96kHz
- Simultaneous Rec Tracks: 6
- Simultaneous Play Tracks: 6
- Built-in Mic(s): Modular (includes X/Y mic capsule)
- Analog Inputs: 4 x XLR-1/4 combo (mic/line)
- Analog Outputs: 1 x 1/8 TRS (stereo line out)
- Headphones: 1 x 1/8
- Built-in Speaker: Yes
- Memory (removable): SD/SDHC/SDXC (up to 128GB)
- File Format: WAV, MP3
- Effects: Highpass filter, Compressor, Limiter
- USB: 1 x Type Mini-B
- Software: WaveLab LE, Cubase LE (download license)
- Power Supply: 4 x AA (alkaline or NiMH) / USB bus powered
- Battery Life: 20 hours
- Stand Mountable: Yes (via optional adapter)
- Height: 6.01
- Width: 3.06
- Depth: 1.88
- Weight: 0.62 lbs.
