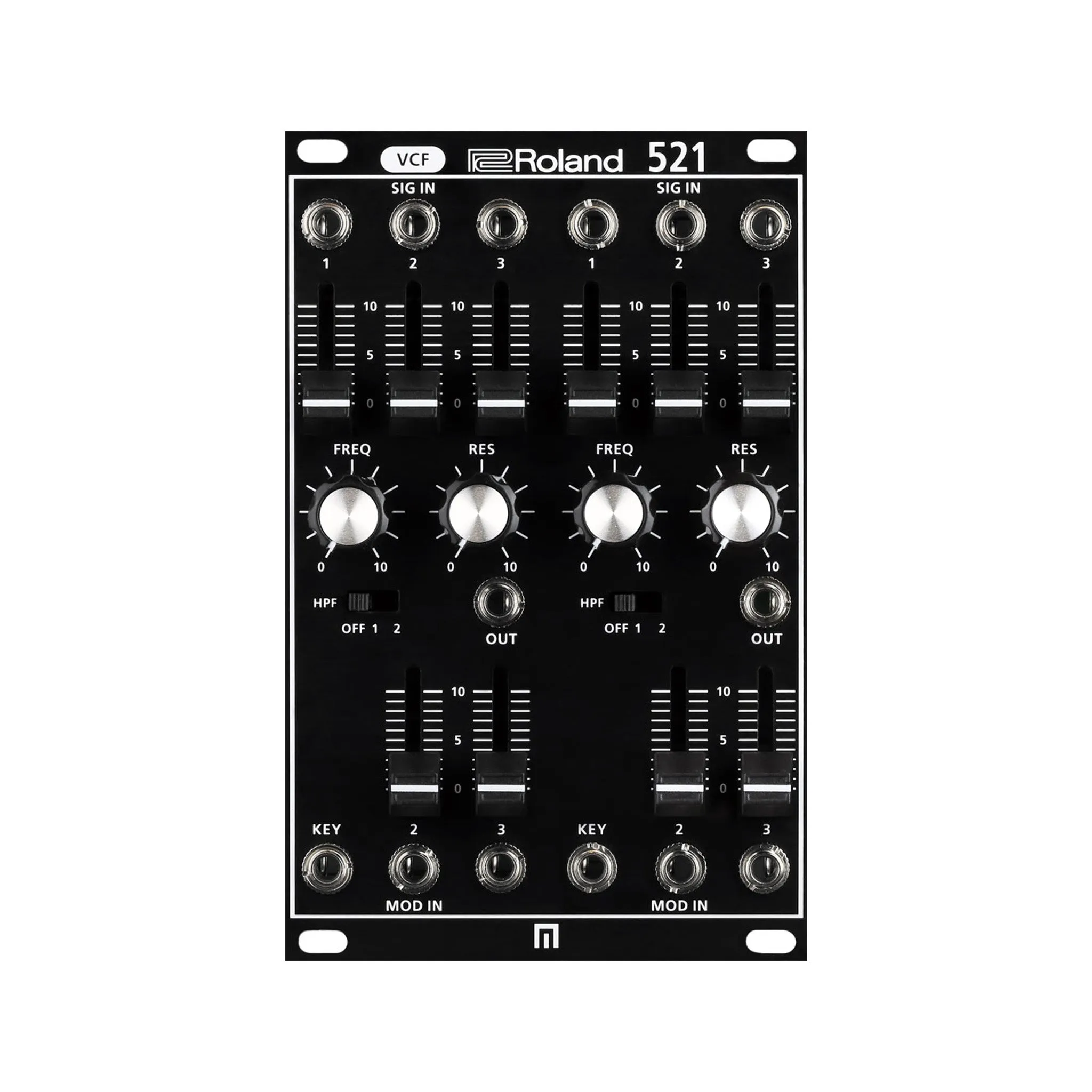

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analogue recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. The SYSTEM-500 is made to exacting standards with top-quality components and solid controls, with a collaborative production process between Portland, USA and Hamamatsu, Japan. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Specifications:

• Controllers: Signal In 1 slider, Signal In 2 slider, Signal In 3 slider, Modulation In 2 slider, Modulation In 3 slider, HPF switch, Frequency knob, Resonance knob
• Connectors: Signal In 1 miniature phone type jack, Signal In 2 miniature phone type jack, Signal In 3 miniature phone type jack, Output miniature phone type jack, Key In miniature phone type jack, Modulation In 2 miniature phone type jack, Modulation In 3 miniature phone type jack
• Power Supply: Eurorack power
• Current Draw: 40 mA ( 12 V), 40 mA (-12 V)
• Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Eurorack installation screws (4 pcs), Eurorack power cable
• Dimensions: 81 mm × 58 mm × 128.5 mm
• Weight: 203 g / 8 oz
